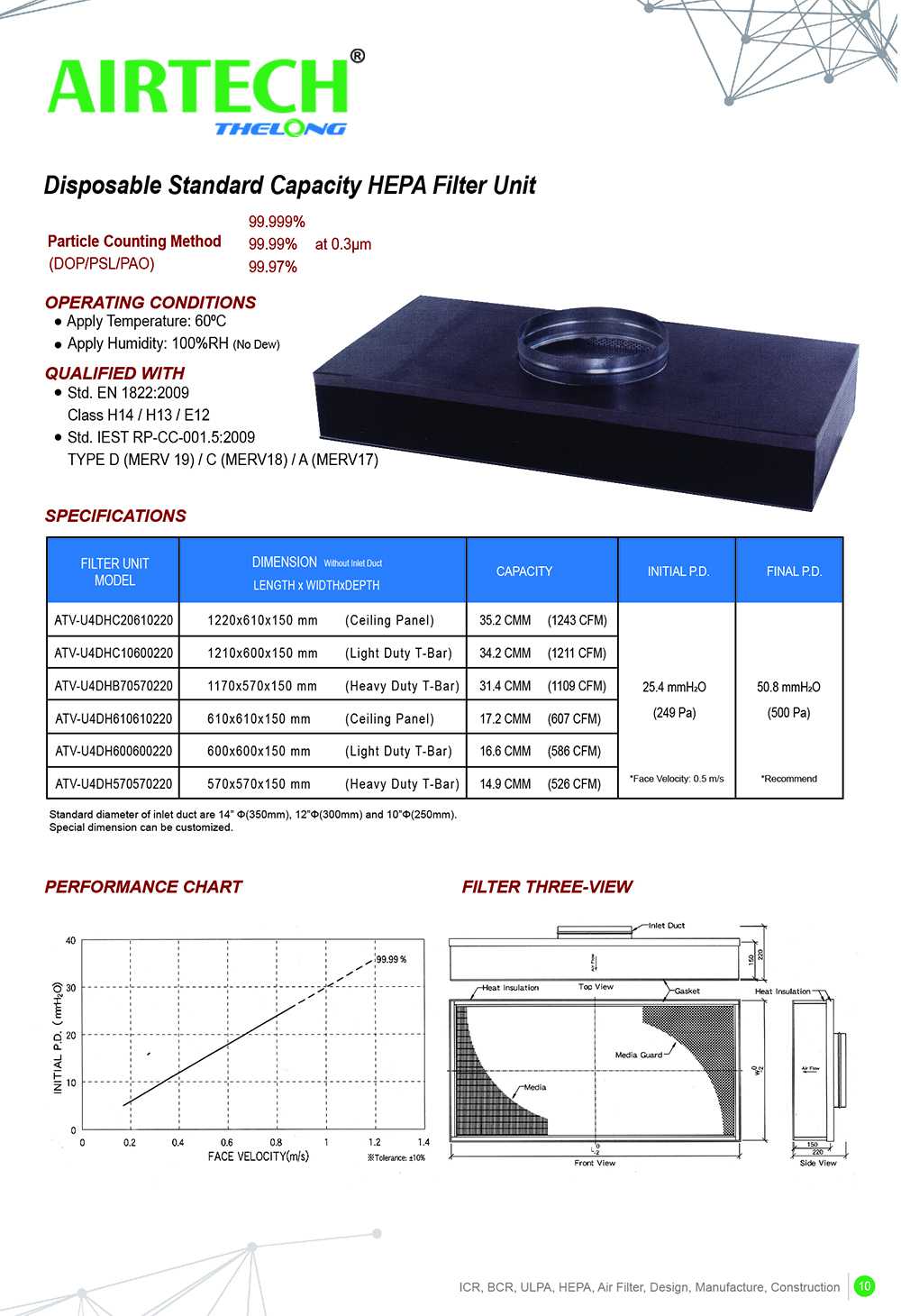

Disposable Standard Capacity Hepa Filter Unit
Particle Counting Method (DOP/PSL/PAO) 99.99% and 99.97% at 0.3µm
OPERATING CONDITIONS
- Apply Temperature: 80oC
- Apply Humidity:100%RH (No Dew)
Disposable Standard Capacity Hepa Filter Unit
Particle Counting Method (DOP/PSL/PAO) 99.99% and 99.97% at 0.3µm
OPERATING CONDITIONS
 |
 |
 |
 |
QUALIFIED WITH
WITH STANDARD CAPACITY ULPA FILTER:
| FILTER UNIT MODEL | DIMENSIONx without inlet duct | CAPACITY | INITIAL P.D | FINAL P.D |
| LENGTHxWIDTHxDEPTH | ||||
| ATV-H4DHC20610220 | 1220X610X150mm (Ceiling Panel) | 35.2CMM (1243 CFM) |
25.4mmH2O (249Pa)
* Face velocity:0.85m/s |
50.8mmH2O (500Pa) *Recommed |
| ATV-H4DHC10600220 | 1210x600x150mm (Light Duty T-Bar) | 34.3CMM (1211 CFM) | ||
| ATV-H4DHC70570220 | 1170x570x150mm (Heavy Duty T-Bar) | 31.4CMM (1109 CFM) | ||
| ATV-H4DH610610220 | 610x610x150mm (Ceiling Panel) | 17.2CMM (607 CFM) | ||
| ATV-H4DH600600220 | 600x600x150mm (Light Duty T-Bar) | 16.6CMM (586 CFM) | ||
| ATV-H4DH570570220 | 570x570x150mm (Heavy Duty T-Bar) | 14.9CMM (526CFM) |
– Standard diameter of inlet duct are 14’’ Ø(350mm), 12’’Ø(300mm) and 10’’Ø(250mm)
– Special dimension can be customized.
 |
 |
 |
 |
